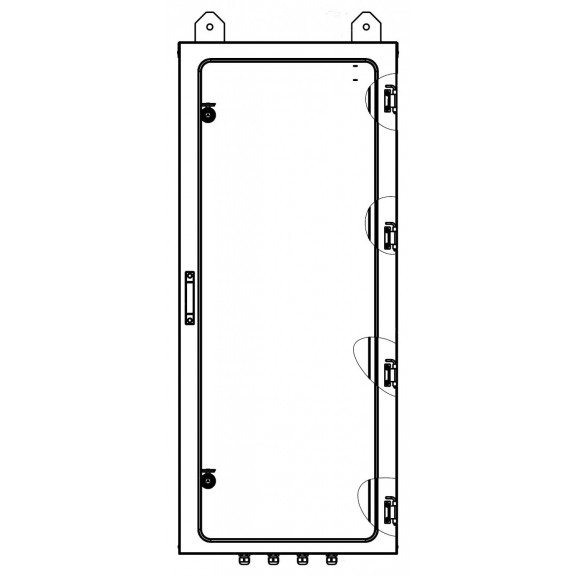

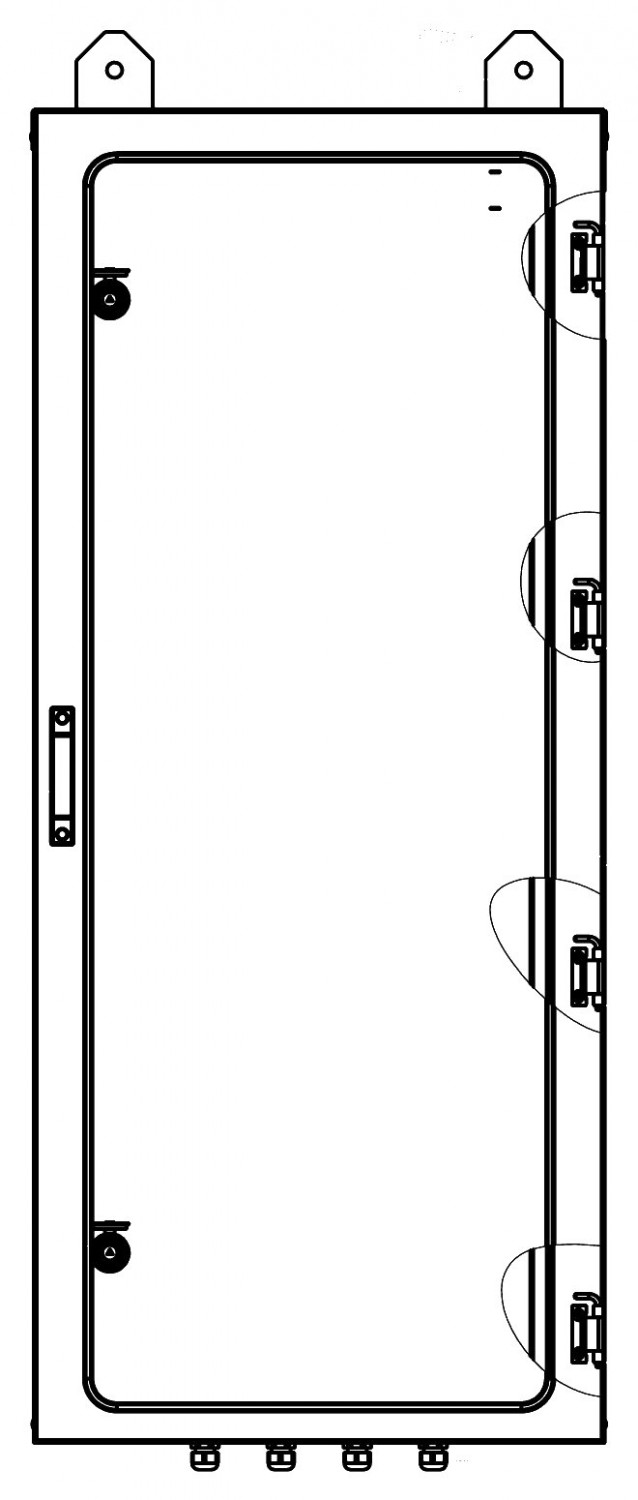

Sfera ShNU 1400×600×300 IP54 cabinet

Equipment

• Galvanised steel body with polymer powder coating
• Door with a gasket around the perimeter and a lock
• Mounting panel / DIN rail
• Cable glands
• Plinth or supports for floor installation

Basic configuration. The composition and dimensions are specified for the task – the cabinet is made to order.

Area of application

The 1400×600×300 mm cabinet holds a mounting panel or DIN rails in 2–3 rows in height, which makes it possible to place circuit breakers, contactors, terminal blocks, metering devices and switching equipment in one body. The depth of 300 mm allows relatively large devices to be installed and cables to be brought in through glands without wires crossing.

Floor installation on a plinth or supports is convenient for sites without load-bearing walls nearby – the cabinet is placed directly next to the facility being served. The door with a gasket and lock provides basic protection from precipitation and dust; if necessary, the configuration is supplemented with heating, ventilation, a thermostat or a canopy to order.

Where it is used:

• metering and distribution of electricity at the boundary of a plot or facility;
• housing automation panels of outdoor installations and pumping stations;
• switching points of outdoor lighting systems for streets and territories;
• equipment for communication sites and low-current systems outside buildings;
• main distribution boards at construction and temporary sites;
• housing monitoring and control devices for utility networks in open territory.
