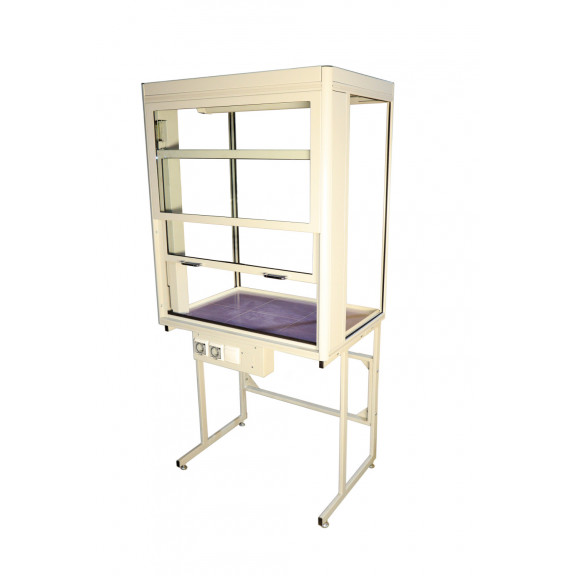

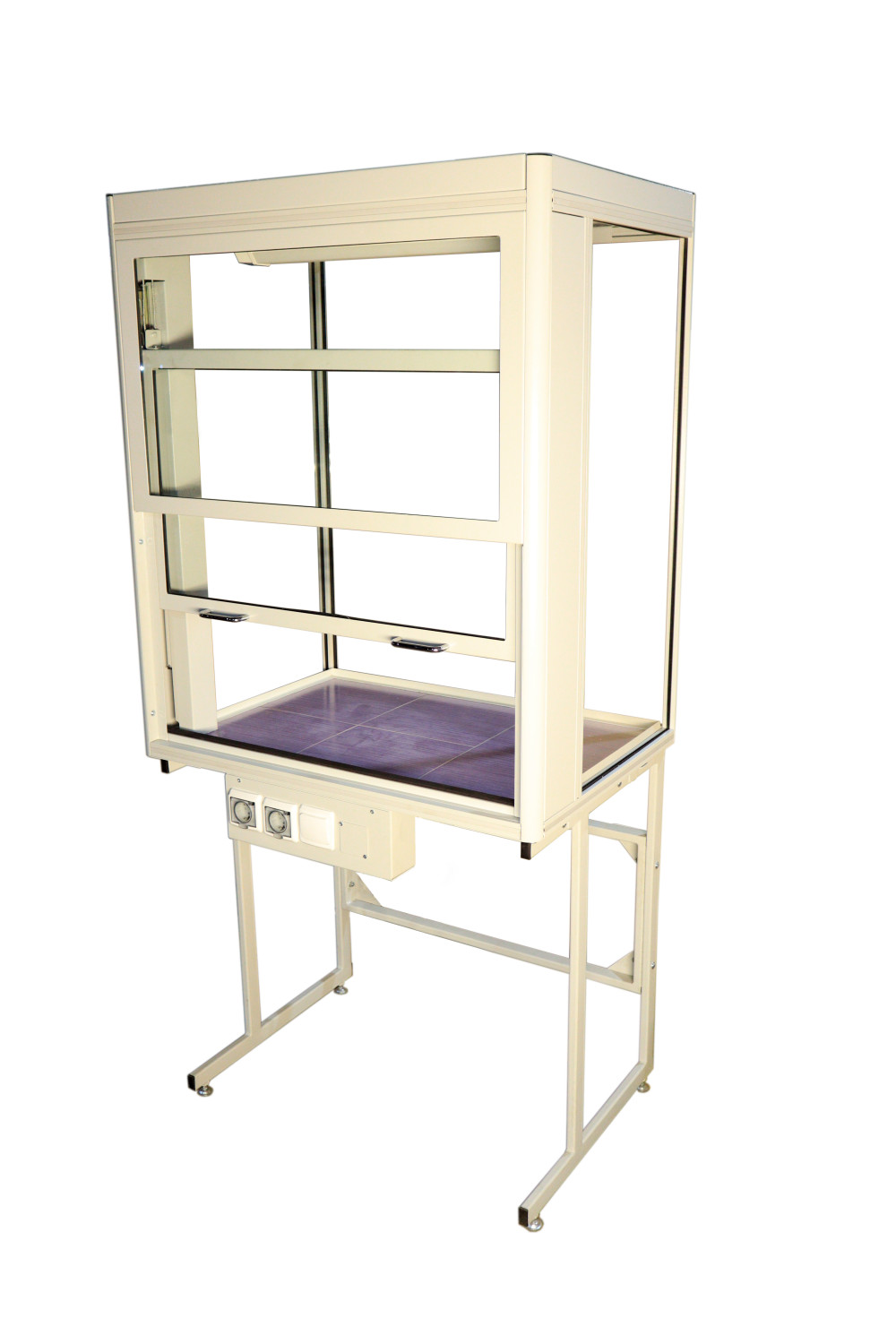

Demonstration fume cupboard
Purpose of the product
The demonstration fume cupboard is designed for demonstration experiments in laboratories and research, including with toxic substances. It is suitable for use as an ordinary fume cupboard in laboratories of various profiles and chemistry classrooms. It has limited use when working with concentrated acids and alkalis, and in conditions of permanently high humidity.
Application:in the chemical and petrochemical industries, municipal services, medicine
- Description
- Equipment
| Overall dimensions (height × width × depth), mm | 1950×940×670 |
| Body material | Steel / aluminium profile |
| Electrics | LED luminaire, 18 W, protection class IP-65 (located in the working zone); splash-proof 220V, 16 A electrical sockets (2 pcs) with earthing and a switch; surface-mounted electrical box, 16A differential circuit breaker with RCD for emergency power cut-off. |
| Upper part | The fume chamber of the cupboard (upper part) is made of a steel frame with a powder coating (compliant with ISO8130-13) that is resistant to acids, alkalis, fats and solvents. The side and rear walls of the frame have transparent acrylic glass panels 4 mm thick. |
| Lower part | Demountable metal frame with polymer coating. Adjustment of supports: 0-30 mm. The table is ceramic-coated. Spill-proof rim. Front screen made of triplex glass or acrylic glass 8 mm thick, the lifting mechanism is outside the working zone, can be fixed in any position. |
Technical specifications
|
Parameter name |
Value parameter |
|
Cabinet overall dimensions, mm, not more than: D × W × H |
1950×940×670 |
|
Body material |
body – steel / aluminium profile with a powder coating (ISO 8130-13) resistant to acids, alkalis, fats and solvents. The side and rear walls of the frame have transparent acrylic glass panels 4 mm thick, and a triplex screen 8 mm thick at the front. |
