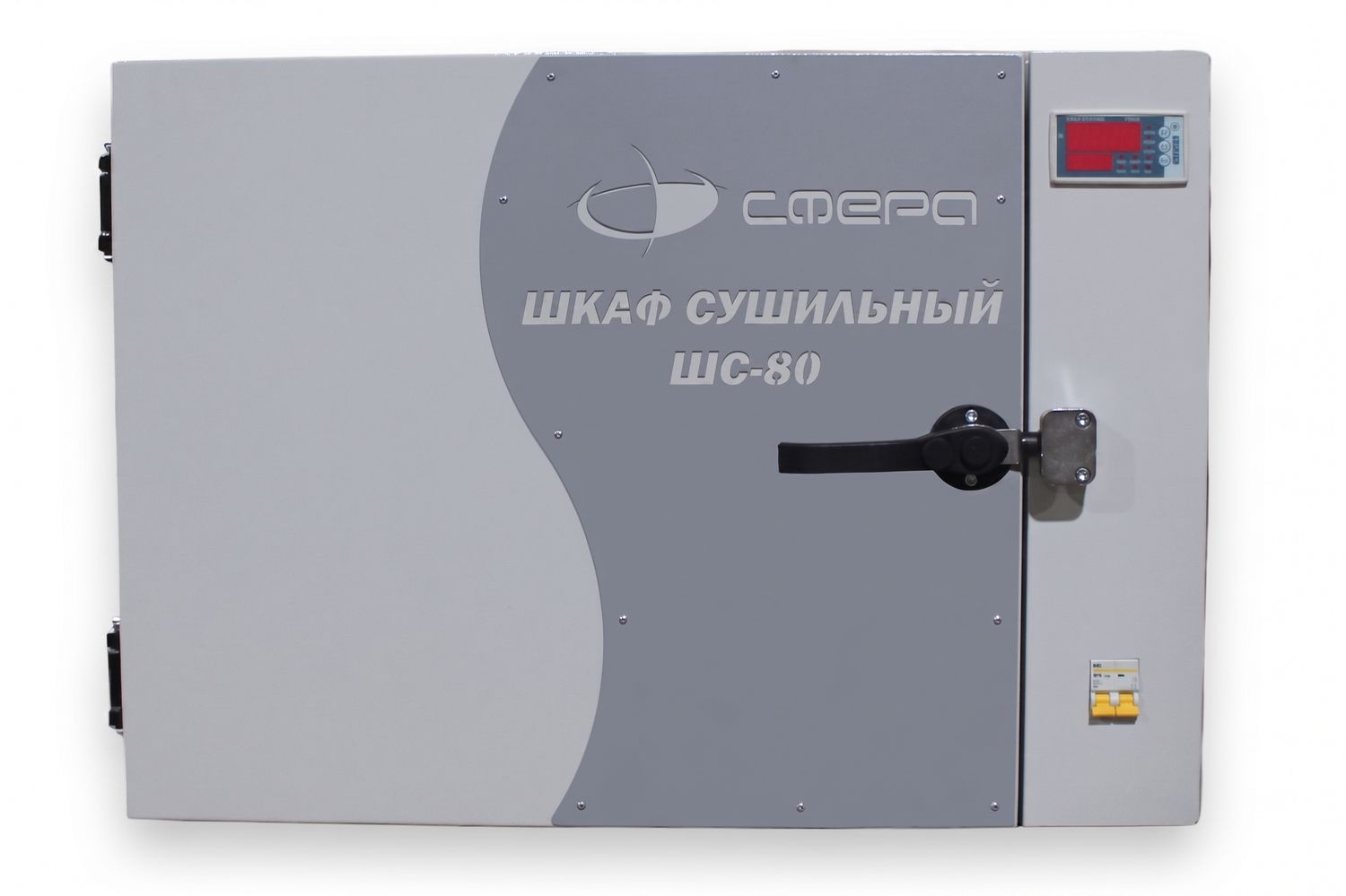

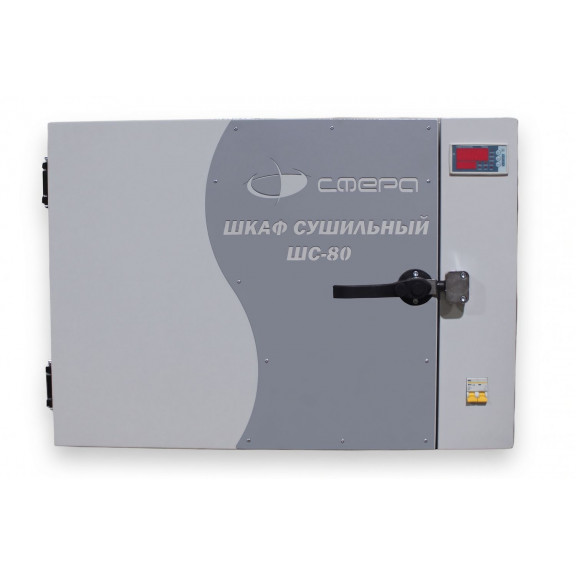

Sfera ShS-80-350-1 TERM° laboratory drying cabinet
The drying cabinet is designed for heat treatment of solid and ground loaded material, and also for drying tools, fatty oils, heat-resistant powders and other materials, glass and metal ware. The cabinet ensures continuous maintenance of a stable temperature inside the working chamber.
Application:in the chemical and petrochemical industries, municipal services, medicine.
- Description
- Configuration and specifications
| Overall dimensions (height × width × depth), mm | 600×770×560 |
| Body material | General-purpose steel |
The basic configuration includes:
- Drying cabinet
- Chamber fittings: 2-3 stainless steel shelves
- Power cord
- Operating manual and data sheet
Technical specifications
|
Parameter name |
Parameter value |
|
Maximum temperature range, °C |
50-350 |
|
Working chamber dimensions, mm, not less than, D × W × H: |
360 × 560 × 400 |
|
Cabinet overall dimensions, mm, not more than, D × W × H: |
560 × 770 × 600 |
|
Internal volume, dm³ |
80 |
|
Weight, kg, max. |
50 |
|
Deviation of the mean temperature at any point of the working volume of the cabinet chamber from the set value, °C, not more than: |
±6,0 |
|
Maximum deviation of temperature at any point from the mean, °C, not more than |
±3,0 |
|
Heating time of an unloaded cabinet from ambient temperature to +350°C, min, not more than |
60 |
|
Power consumption, kW, not more than |
2,5 |
|
"Alarm" signal activation temperature, not more than, °C |
361 |
|
Body material |
body – steel, |
|
Air convection in the chamber |
Forced by a fan |
