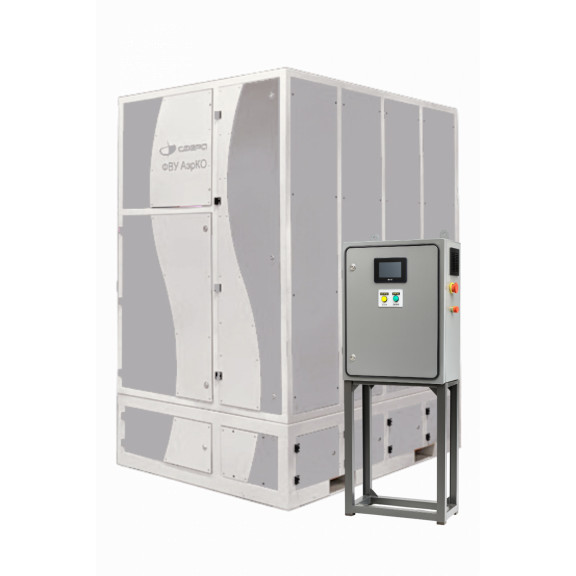

AerCO TURBO 10 000 explosion-proof FVU

*– the real FVU flow rate is given, without taking connected external duct lines into account.

Air purification in the AerCO TURBO FVU takes place as the air moves through first- and second-stage filters. The unit is designed for production with increased explosion-safety requirements, for example in production where graphite dust must be removed. Under a technical specification, an explosion-proof FVU can be made for the customer's tasks.

The AerCO TURBO FVU has an original hopper design: each cyclone works with its own independent hopper. This prevents air flows from crossing between the cyclones, which increases the overall efficiency.

Thanks to the integrated design solutions, the aerodynamic chamber provides a purification efficiency of up to 95% for particles larger than 5 µm, which significantly exceeds the values typical of cyclone filters.

In addition, the aerodynamic chamber solves the task of pre-filtering oil smoke that arises, for example, during laser cutting of metal sheets covered with an oil film.

For high-quality air purification from particles smaller than 5 µm, the AerCO TURBO FVU uses second-stage filters – fine-filtration cartridge filters.
Contamination of the cartridge filters that occurs while the FVU is running is removed by blowing them with compressed air. The cleaned air is discharged by the FVU through the outlet opening in the top wall of the FVU body.

1) Use of an antistatic coating;

2) Stainless steel hopper and cyclones (to avoid static voltage building up as graphite particles move inside the unit)

3) Explosion-proof equipment (fan, pulse-jet cleaning valve, differential pressure sensor)

4) Remote control cabinet (15 m) – for remote operation of the unit + to avoid sparking
