The AerCO filter-ventilation unit

Reduces the likelihood of occupational diseases among employees
Reduces the likelihood of occupational diseases among employees
Reduces the amount of harmful substances in the air of the production premises
Reduces the amount of harmful substances in the air of the production premises
Improves working conditions and the company's image
Improves working conditions and the company's image

AERCO FILTER-VENTILATION UNIT IS:

Efficiency
of over 95%
(fine filter
class F9)
Touch screen
control
Automatic
regeneration function for cartridge
filters
Compact
overall
dimensions

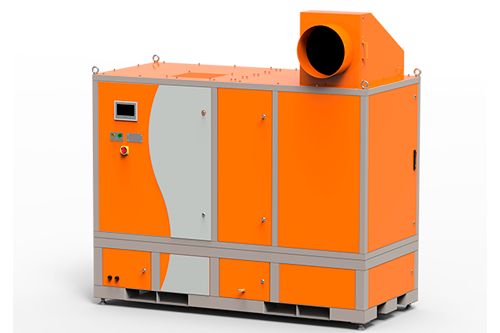

REAL, NOT NOMINAL, PERFORMANCE

Many manufacturers of filter-ventilation units, when stating performance, only mean the volume of air the unit's fan can pass, without taking into account the throughput and losses of the whole system. The stated performance of AerCO series FVUs made by URMK "SFERA" is, on the contrary, the performance of the whole system without additional connected ducts.

REAL, NOT NOMINAL, PERFORMANCE Place an order
REAL, NOT NOMINAL, PERFORMANCE
The AerCO filter-ventilation unit
In stock In stock
AerCO 6000 FVU
AerCO 6000 FVU
For air purification during laser and plasma cutting, welding and abrasive processing of metals.

✔ Number of cartridge filters: 4 pcs.
Submit a request
In stock In stock
AerCO 8000 FVU
AerCO 8000 FVU
For air purification during laser and plasma cutting, welding and abrasive processing of metals.

✔ Number of cartridge filters: 6 pcs.
Submit a request
In stock In stock
AerCO 10000 FVU
AerCO 10000 FVU
For air purification during laser and plasma cutting, welding and abrasive processing of metals.

✔ Number of cartridge filters: 6 pcs.
RUB 1 130 000*
Submit a request

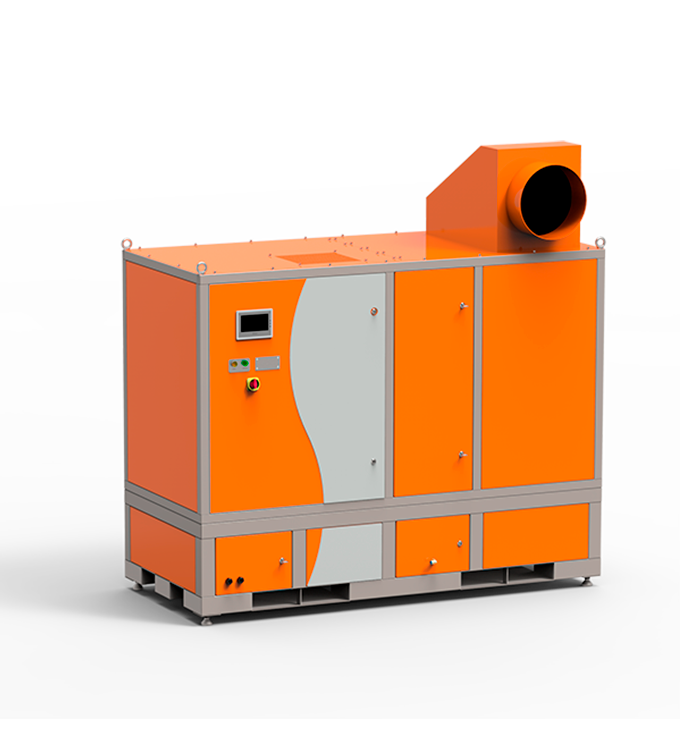

EFFECTIVE AIR PURIFICATION IN METALWORKING CONDITIONS

EFFECTIVE AIR PURIFICATION IN METALWORKING CONDITIONS

AerCO filter-ventilation unit (AerCO FVU)– a product of modern technology that effectively cleans the air in production that uses the following for metal processing:
– laser cutting;
– plasma cutting;
– welding;
– abrasive processing.

Air purification in the AerCO FVU takes place as the air moves through cartridge fine filters. Process equipment (laser, plasma, grinding machines) is a source of polluted air. The operation of such equipment may produce sparks – particles of metal heated to a high temperature. The first-stage filter of the FVU is a spark-arrestor filter (G2) that, besides filtration, acts as a spark arrestor.

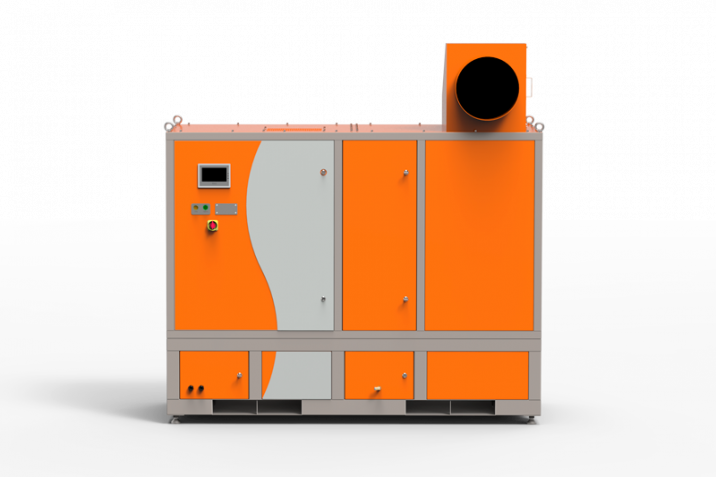

Lowering the hazard class of working conditions
in a production with the AerCO FVU

Where the working conditions class is 3.1—4, the employer must pay employees a salary supplement (from 4%) and also grant additional leave of at least a week. In addition, working hours are shortened: employees may work no more than 36 hours a week. As a rule, such employees can retire early.

AerCO FVU filter-ventilation units made by URMK "SFERA" reduce the working conditions class (hazard) in production. Accordingly, the amount of mandatory supplements for employees is reduced. Using aspiration units helps create safer and more comfortable working conditions, while reducing the financial burden on the company.

Lowering the hazard class of working conditions<br /> in a production with the AerCO FVU Place an order
Lowering the hazard class of working conditions<br /> in a production with the AerCO FVU

Advantages of the AerCO filter-ventilation unit

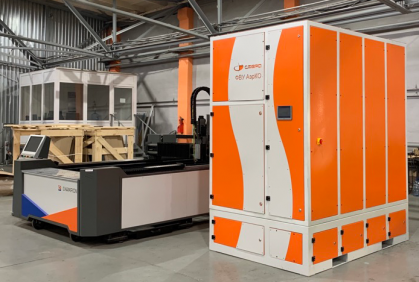

The AerCO FVU occupies a small area – less than 4 m2 – and at the same time provides a purification efficiency of over 95% (fine filter class F9, GOST R EN 779-2014).
The AerCO FVU occupies a small area – less than 4 m2 – and at the same time provides a purification efficiency of over 95% (fine filter class F9, GOST R EN 779-2014).

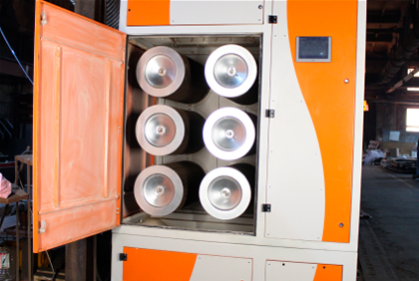

Maintenance and replacement of the cartridge filters is done from the front through a door – this makes the FVU convenient to operate.
Maintenance and replacement of the cartridge filters is done from the front through a door – this makes the FVU convenient to operate.

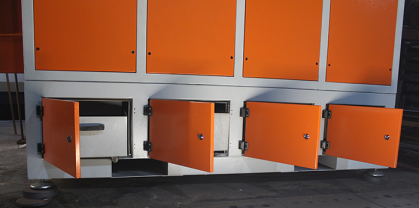

Forklift slots and eye bolt mountings allow the AerCO FVU to be transported and installed quickly.
Forklift slots and eye bolt mountings allow the AerCO FVU to be transported and installed quickly.

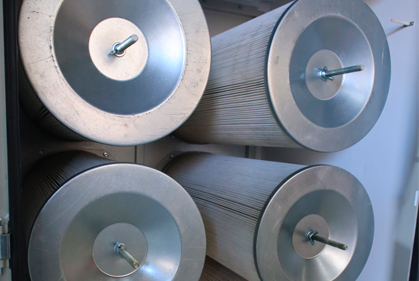

Programmable function for automatic cleaning (regeneration) of the cartridge filters with pulses of compressed air.
Programmable function for automatic cleaning (regeneration) of the cartridge filters with pulses of compressed air.

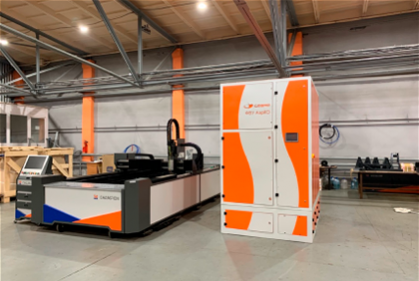

Service life of the AerCO FVU – at least 20 years (excluding consumables).
Service life of the AerCO FVU – at least 20 years (excluding consumables).

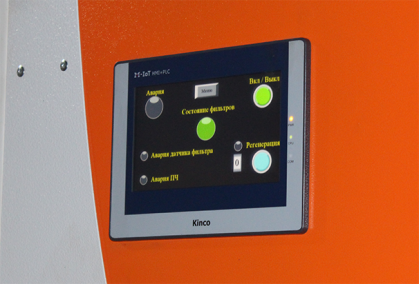

Touch screen with a convenient and intuitive interface.
Touch screen with a convenient and intuitive interface.
The AerCO FVU can direct the cleaned air back into the room. This reduces the cost of heating the workspace in the cold season.
The AerCO FVU can direct the cleaned air back into the room. This reduces the cost of heating the workspace in the cold season.

AerCO FVU test results

Results of research (tests) and measurements of the chemical factor of the AerCO filter extraction unit - 6000/8000/10000 dated 30.01.2024

Name of workplace, work area, factor Hazard class MAC Measurement results
Inlet air Outlet air % reduction of the harmful factor
Carbon monoxide mg/m3 4 20 4.58; 6.23 3.05; 5.20 33%; 16%
Nitrogen oxide mg/m3 3 5 0.25; 0.32 0.12; 0.2 52%; 37%
Manganese in welding aerosols mg/m3 2 0.6/0.2 0.5; 0.55 0.15; 0.26 70%; 52%
Nickel, nickel oxides, sulphides and mixtures of nickel compounds (matte, nickel concentrate and agglomerate, recycled dust from treatment devices) (as nickel) mg/m3 1 0.05 0.23/ 0.32 0.03; 0.048 86%; 85%
dichromium trioxide /as chromium (III)/ (chromium sesquioxide), chromium oxide mg/m3 3 3/1 2.76; 3.89 0.146; 0.23 94%; 93%
Manganese oxides /as manganese dioxide/ a) disintegration aerosol mg/m3 2 0.3 0.28; 0.46 0.14; 0.22 50%; 52%



Results of measurements of predominantly fibrogenic aerosols (PFA) 6000/8000/10000 dated 30.01.2024;

Name of workplace, work area, factor Hazard class MAC Measurement results Results of measurements for shift-average concentration values
Inlet air Outlet air % reduction of the harmful factor Inlet air Outlet air % reduction of the harmful factor
Dust (10%>SiO2>2), mg/m3 3 -/4 76.0; 81.0 3.17; 5.9 95%; 92% 47.1 2.72 94%
diiron trioxide (iron(III) oxide) 4 6 22.3; 39.9 0.96; 2.0 95%; 94% 18.7 0.89 95%

The measurement results are confirmed by a report from an independent accredited testing laboratory. To request the test report, follow the link and fill in the request form.

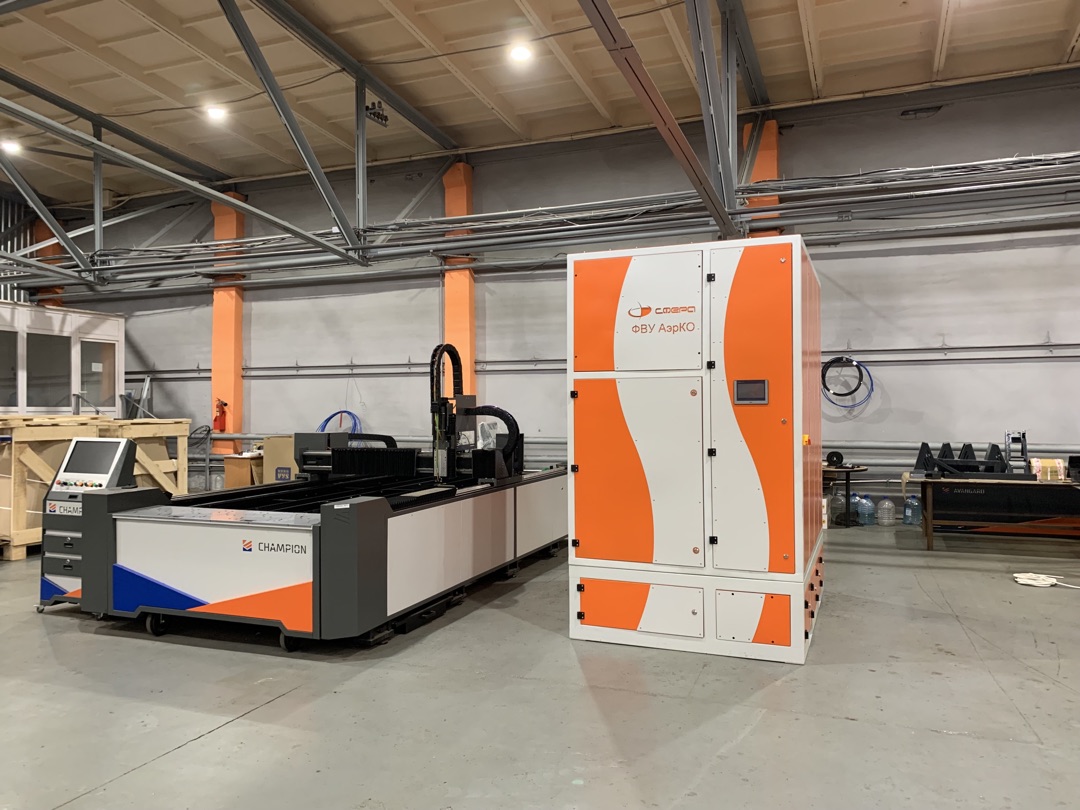

Installing the AerCO FVU

Installing the AerCO FVU

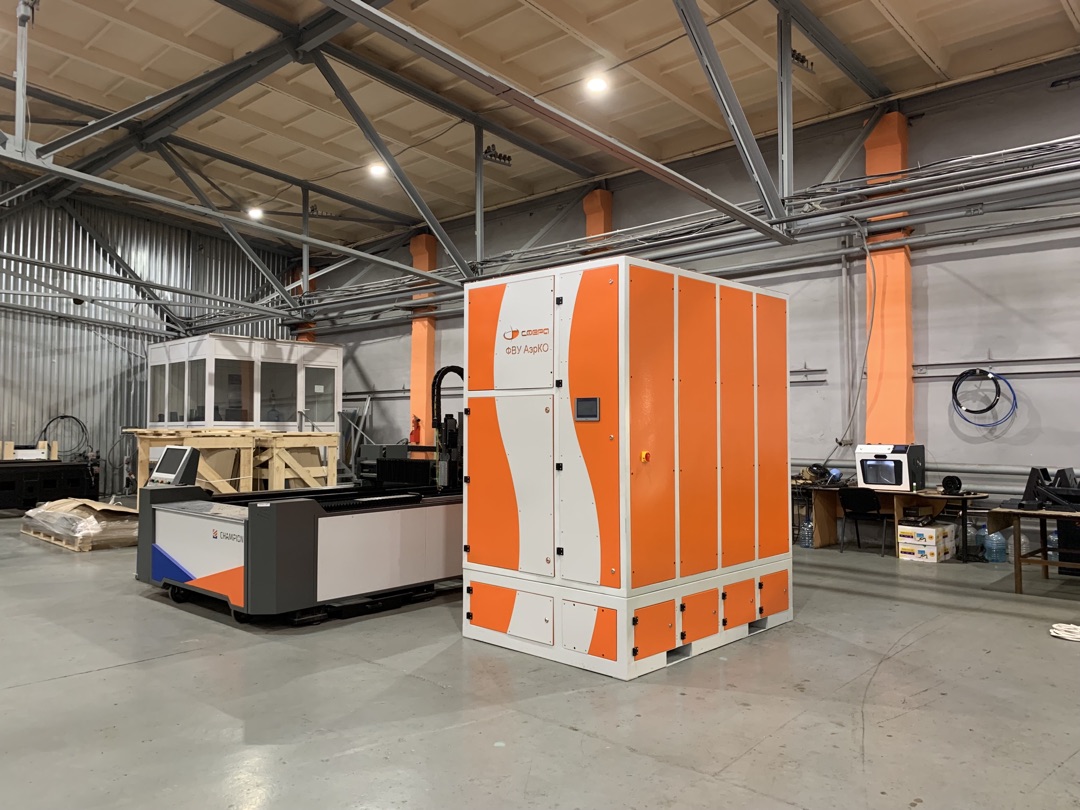

Special openings in the design make it possible to quickly place the AerCO FVU in the required spot with a forklift. Crane equipment can be used to move the unit (eye bolts are included).

As a rule, no special surface preparation is needed for installing the aspiration unit. The AerCO FVU is placed on a level, hard surface. Four adjustable feet ensure horizontal levelling of the unit.

Manufacturer's warranty

Manufacturer's warranty

The manufacturer guarantees that the equipment will comply with the technical requirements for 12 months provided that the instructions in the Operating Manual are observed during installation and use of the AerCO FVU. The warranty covers factory defects found during operation. The full list of warranty obligations can be found in the data sheet for the AerCO FVU.
