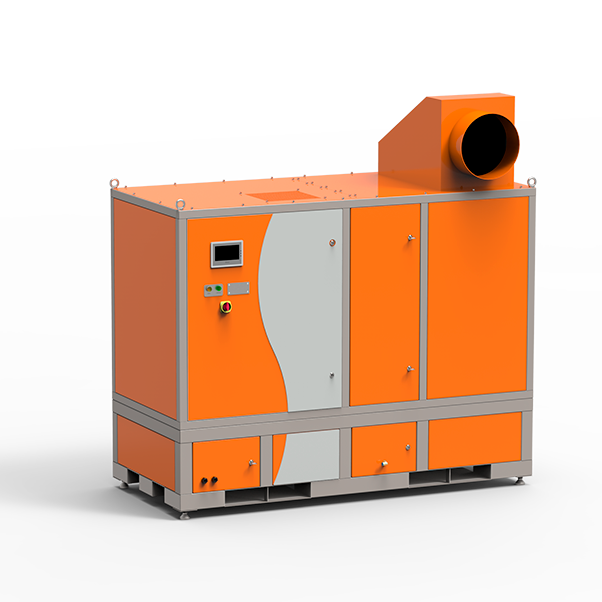

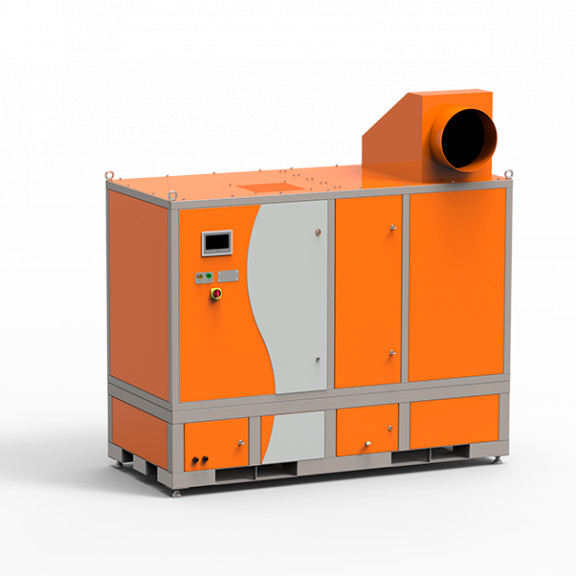

AerCO 8000 FVU
In stock
The AerCO SARMA 8000 FVU provides efficient air filtration in production where laser and plasma cutting, welding and abrasive processing of metals are used.
- Description
- Specifications and main elements
*– the real FVU flow rate is given, without taking connected external duct lines into account.
Air purification in the AerCO SARMA FVU takes place as the air moves through first- and second-stage filters. Because the operation of process equipment that is a source of polluted air (laser and plasma cutting machines, welding and abrasive equipment) may produce sparks – particles of metal heated to a high temperature – the first-stage filter of the FVU is a spark-arrestor filter that, besides filtration, acts as a spark arrestor.
For high-quality air purification from particles smaller than 5 µm, the AerCO SARMA FVU uses fine-filtration cartridge filters.
Contamination of the cartridge filters that occurs while the FVU is running is removed by blowing them with compressed air. The cleaned air is discharged by the FVU through the outlet opening in the top wall of the FVU body.
Technical specifications:
- Overall dimensions (L×W×H) – 2360x1110x2400 mm.
- Weight – up to 750 kg.
- Number of cartridge filters – 6.
- Fan drive power – 7,5 kW.
- Flow rate – 6000-8000 m³/h*.
- Cartridge filter regeneration system – present.
- ⌀ Inlet nozzle diameter – 315 mm.
- Type of regeneration system – pneumatic.
* – the real FVU flow rate is given, without taking connected external duct lines into account.
