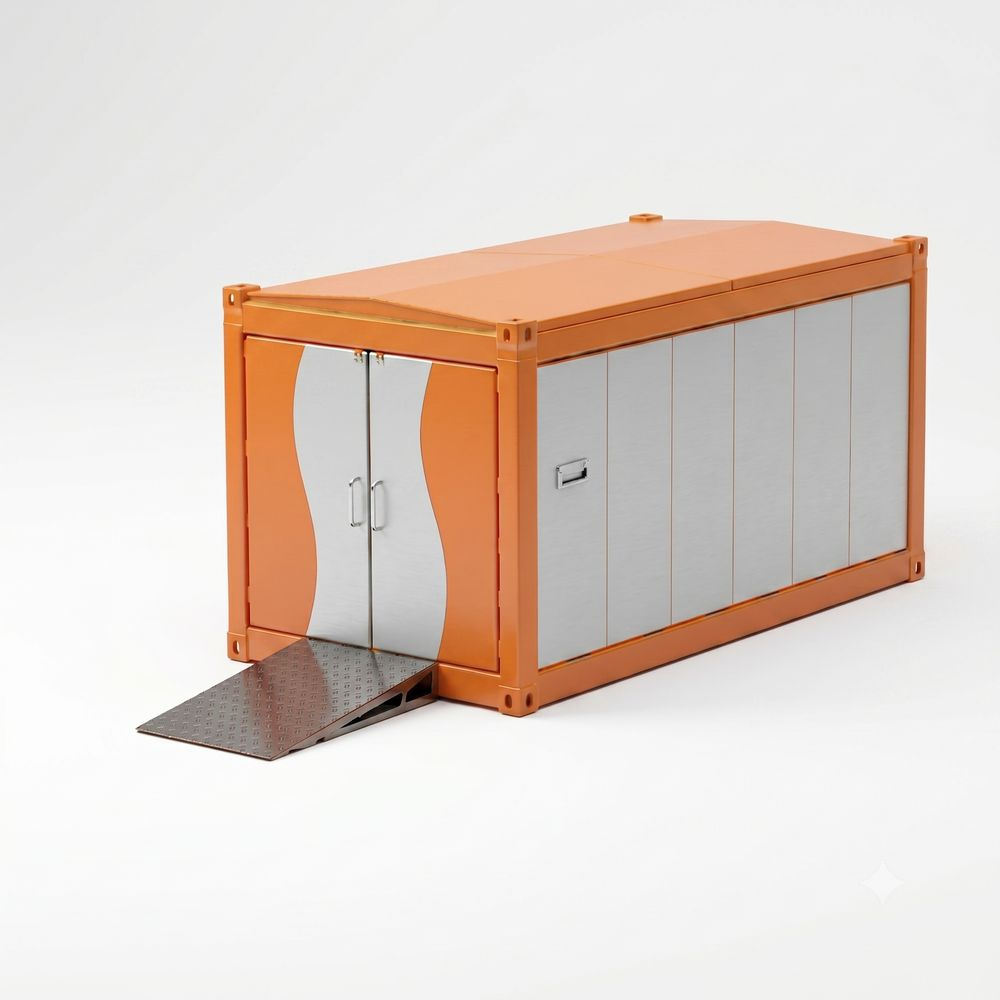

Flammable Liquids Store block container 6000×2440×2700 mm
- Description
The "Flammable Liquids Store" block container is designed for the safe storage of flammable liquids, combustible materials and equipment at industrial sites, petrol stations and warehouses.
Design – a welded frame made of bent profile (09G2S steel) with a fire-retardant coating. Cladding: three-layer mineral wool sandwich panels of 50–200 mm or an all-welded version (outer sheet 1,5 mm + basalt wool + inner profiled sheet S8). The roof is pitched and sealed, made of 1,5 mm steel.
Floor – three-layer, insulated with 200 mm of basalt wool. An integrated sealed steel tray with a slope to the drain hole and removable galvanised grates for pallet loads. The tray and frame have a chemically resistant anti-corrosion coating.
Heating – explosion-proof electric convectors that keep the inside at no less than +5°C.
Ventilation – forced supply and exhaust with dampers, electric actuators and protective louvres: constant air exchange and removal of flammable liquid vapours.
Lighting – working (220 V) and emergency (battery-powered), wiring in protective conduits, controls placed on the outer wall.
Fire safety – automatic powder fire extinguishing system, heat and smoke detectors, fire and security control panel, sound and light signs, portable CO₂ extinguishers. Fire and security alarm with gas contamination sensors (flammable liquid vapours).
Gate and door – swing gates at the end and an additional end door for installing and removing equipment.
The container is supplied fully ready for connection of utilities – all systems are pre-installed and tested.
Key components and systems

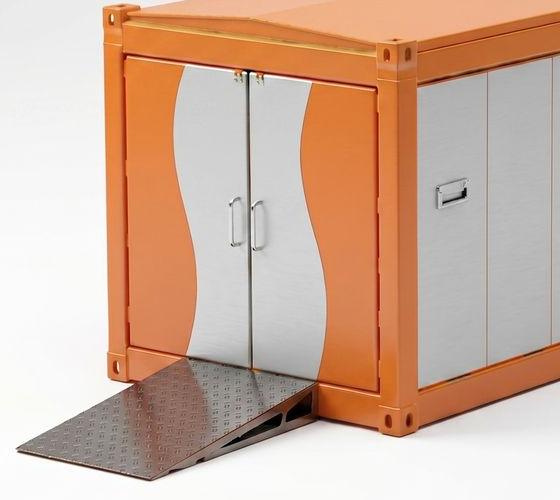

Swing gates with a ramp – convenient loading of drums and pallets with a pallet truck or forklift

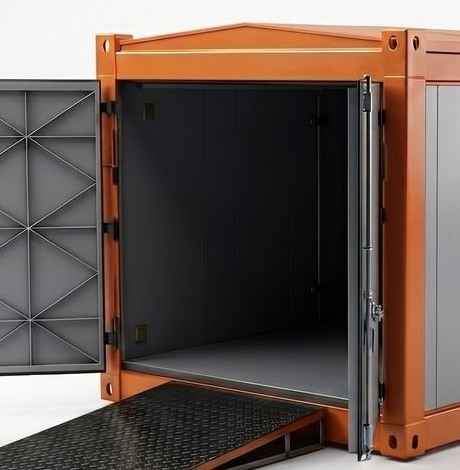

Insulated body: basalt wool in the walls, floor and roof, sealed utility entries

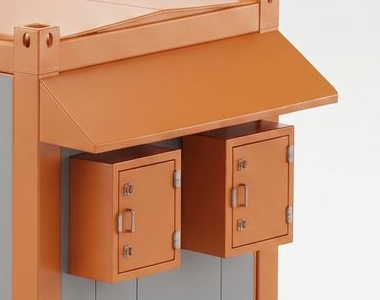

Supply and exhaust ventilation: dampers with electric actuators under a protective canopy

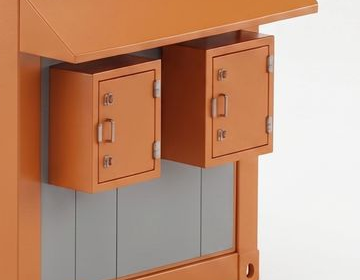

Sealed control panels – placed on the outer wall of the container
Sealed tray: slope to the drain, removable galvanised grates for the weight of loaded pallets (diagram)
Automatic powder fire extinguishing, heat and smoke detectors, signs and extinguishers (diagram)
Standard configuration
- Insulated container (mineral wool/sandwich panels, fire resistance degree II–III)
- Industrial fans, air dampers with electric actuators
- Explosion-proof luminaires (main + emergency)
- Automatic and manual fire extinguishing equipment
- Galvanised grating with a sealed tray
- Swing gates, powder-coated frame
Additional options (on request)
- Metal steps with handrails
- Window
- Outdoor bracket for utility connections
- Increased thermal insulation
- Gas or aerosol fire extinguishing instead of powder
