AerCO 1400 FVU
In stock
Characteristics

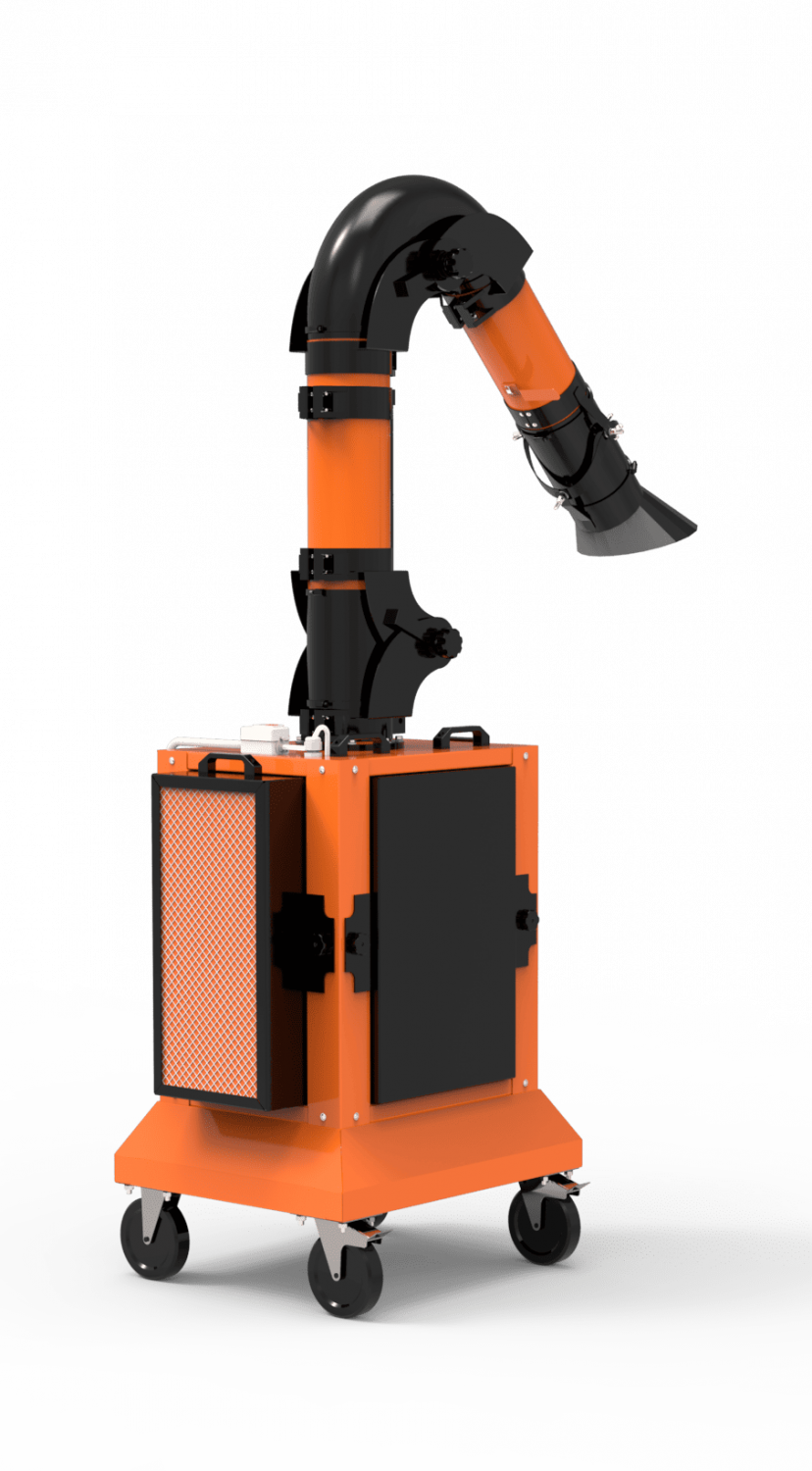

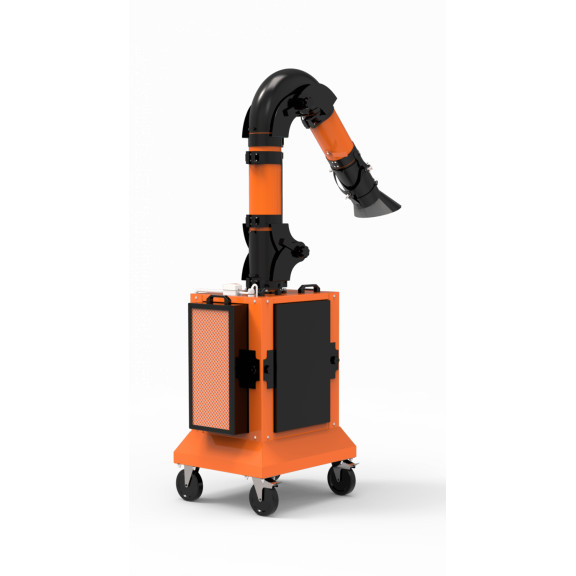

The AerCO Mistral 1400 FVU is a mobile filter-ventilation unit (MFVU). It removes mechanical impurities, dust and other particles from the air formed when welding stations and small machines operate.
Price:
188 000 rubles*
- Description
The AerCO Mistral 1400 mobile FVU with a flexible extraction arm (FEA) is designed for local air purification in production. It removes dust particles formed during metal processing and welding and improves workplace culture. Thanks to its small size and castors, the MFVU can be installed in any convenient place in production and, if necessary, moved to another machine.
The system includes three filters: a coarse pre-filter, a main fine filter, and a carbon filter that is installed at the customer's request.
Technical specifications:
- Overall dimensions (L×W×H): 785x595x1944 mm.
- Fan motor power — 1,1-1,5 kW.
- Extraction arm cross-section diameter — 160 mm.
- Filters (depending on the customer's goals): panel air filter (filtration class G2), cassette air filter (filtration class G4), compact flat air filter (F9), carbon filter (to order).
- Extraction arm reach — 1,5/2/2,5/3 m.
- Weight — up to 235 kg.
- Design — mobile (movable).
- Number of flexible extraction arms and workstations — 1.
