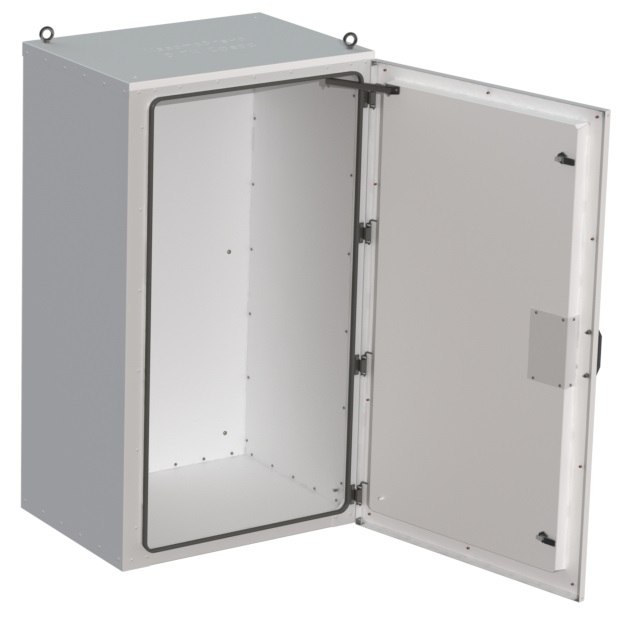

Sfera ShU-1400x800x600-2-2-IP65 ZiNC thermal cabinet
Price:
64 900 rubles*
- Description
- Additional options
- Documents
- Double corrosion protection. The cabinet is made entirely of galvanised steel GOST 14918 with a polymer powder coating (PPC).
- Increased ingress protection against moisture and dust (IP65), confirmed by a certificate.
- Outdoor version UHL1. Operation at temperatures from -70 to +45
- Double metal wall. Can be mounted directly on the cabinet wall
- Thermal insulation material – mineral wool insulation boards (50 mm thick)
Basic configuration of the Sfera ShU ZiNC series thermal cabinet
- Body made of galvanised metal GOST 14918 1,5 mm thick.
- EPDM D-profile gasket with metal cord between the body and the door.
- Triangular-key lock with IP65 protective cover – 2 pcs.
- Standard mounting holes for fixing feet, frame and canopies.
- Wear-resistant door handle for panels made of glass-filled polyamide.
- Earthing wire between the body and the door.
- Transport lifting loops in the cabinet roof.
- Packaging: bubble wrap and cardboard.
| № | Option | Unit | Height | Width | Depth | Price |
|---|---|---|---|---|---|---|
| 1 | Feet 800 mm – 4 pcs. | set | 800 | 70 | 70 | RUB 6 500 |
| 2 | Feet 500 mm – 4 pcs. | set | 500 | 70 | 70 | RUB 4 500 |
| 3 | Feet 300 mm – 4 pcs. | set | 300 | 70 | 70 | RUB 3 400 |
| 4 | Frame 500 mm | RUB 8 000 | ||||
| 5 | Frame 100 mm | RUB 6 500 | ||||
| 6 | Canopies 4 pcs. | set | - | |||
| 7 | Vandal-resistant mortise lock | pcs | RUB 1 900 | |||
| 8 | Mounting panel | RUB 2 800 | ||||
| 9 | Galvanised canopy | RUB 2 400 | ||||
| 10 | Cable glands | Depends on the number of glands and the cable diameter | ||||
