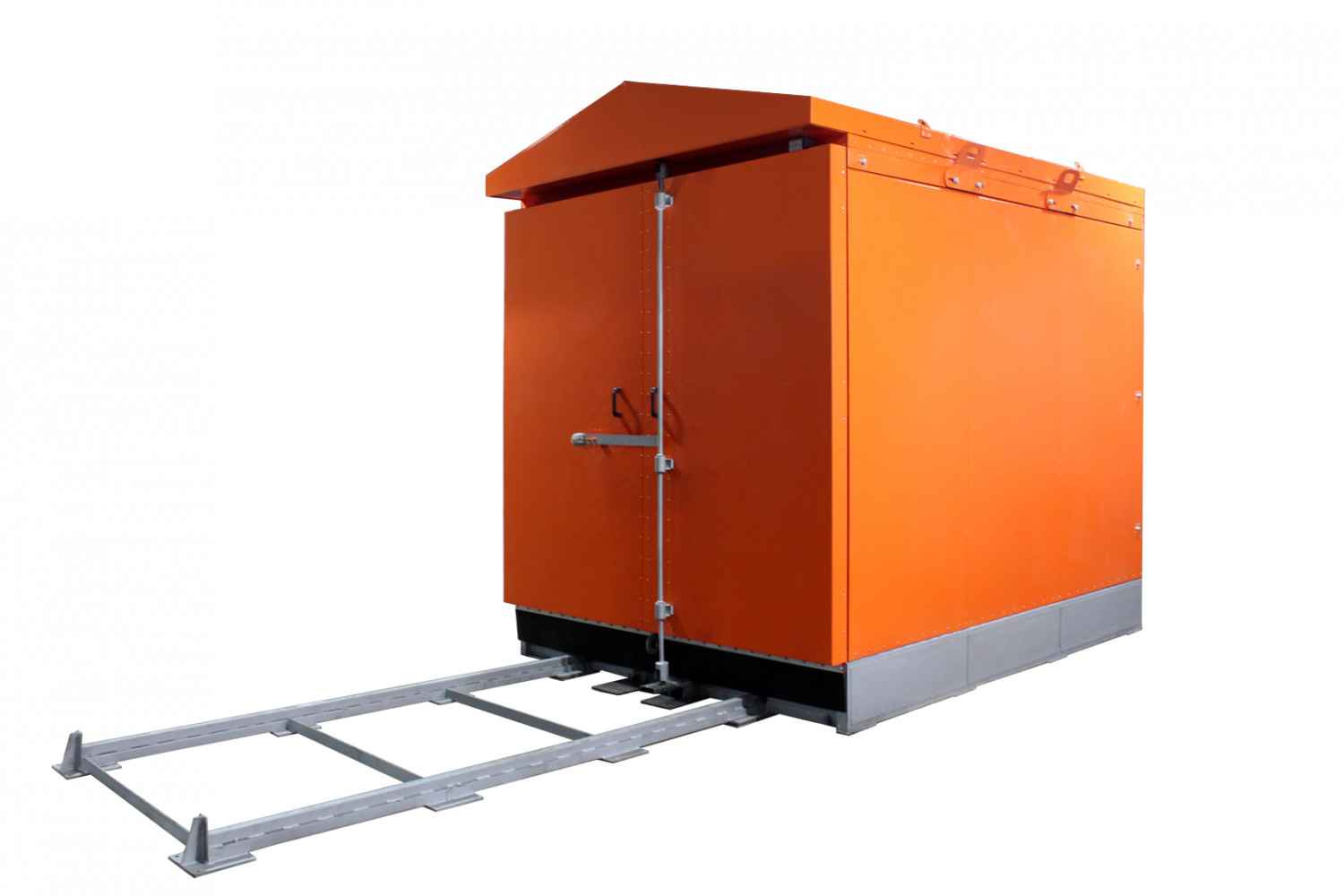

Industrial cabinet with a roll-out hearth

Main parameters and dimensions:

• Rated supply voltage of the cabinet (three-phase), V: 380
• Supply voltage frequency, Hz: 50
• Maximum power consumption of the cabinet, kW: 30
• Installation type: floor-standing, stationary
• Electronic temperature controller: yes
• Temperature control range inside the ShS (lower limit to be set 5 °C above ambient temperature), °C: 0-130
• Forced ventilation system: yes
• Degree of protection per GOST 14254-2015: IP54
• Climatic version: UHL1
• Working chamber dimensions, mm (W×D×H): 1800×2700×1900, deviation of ±3% permitted
• Cabinet overall dimensions, mm (W×D×H): 2300×2965×2990, deviation of ±3% permitted
• RAL colour: 2004
• Cabinet body and chamber material: galvanised steel
• Maximum trolley load capacity, t: 9
• Trolley rails, m (supplied in sections): 5
• Platform height from the cabinet floor, not more than, mm: 500
• Heating time of an unloaded cabinet from ambient temperature to +130 °C, min (not more than): 50
• Maximum deviation of temperature at any point from the mean, °C, not more than: ±2
• Deviation of the mean temperature at any point of the working volume of the cabinet chamber from the set value, °C, not more than: ±8
• Cabinet doors: swing
• Control and switching automation: yes
• Cabinet painted with outdoor-grade polymer paint: yes

Drying cabinet with a roll-out (pull-out) hearthis universal and indispensable thermal equipment used in the engineering, electrical, pharmaceutical, textile and woodworking industries, as well as in metallurgy, construction and other fields.

Our company makes low-, medium- and high-temperature batch-type thermal furnaces. The chamber drying cabinet is equipped with fans that provide forced convection, so materials can be processed at high temperature. All the thermal insulation materials used are high-quality and environmentally safe, and contribute to fast heating of the working chamber and lower energy consumption.

In manufacturing industrial drying cabinets, Sfera Group uses components from Russian and European manufacturers. We have all the resources necessary for a full production cycle. Every finished product passes quality control.

Features of the chamber furnace with a roll-out hearth:

● The furnace is made of sheet metal.

● It consists of two chambers – an outer and an inner one.

● Painting is done with a polymer powder coating applied at high temperatures.

● The working area of the chamber is made of stainless corrosion-resistant steel.

● The inner chamber is highly resistant to mechanical deformation and to chemical and aggressive vapours.

● The chamber is heated by heating elements installed on all walls and in the hearth.

● Fans are mounted in the arch of the chamber, creating forced convection so that the temperature is distributed uniformly throughout the working chamber. Maximum heating temperature – ...°C.

● Fans and ventilation nozzles exhaust air from the chamber to the outside for fast changes between heating and cooling cycles.

● Thanks to high-quality, highly efficient multilayer thermal insulation, heat is retained inside the chamber for up to 5 hours after a power cut, so the work process need not stop.

● The refractory hearth (floor, stand) has a welded frame. A seal of the thermal insulation layer is located inside the hearth.

● Rail guides ensure convenient and smooth movement of the hearth, which has flanged wheels. At the customer's request, the hearth can be fitted with an electric drive.

● The drying furnace is equipped with electronic control with digital display, which allows the temperature to be regulated with high precision. The control system provides heating, temperature-holding and fan modes and an overheating lock-out device. An electronic recorder is also installed to log the temperature regime.

● Thanks to the modular design of Sfera electric drying furnaces, maintenance is quick, easy and convenient.

● The furnaces of Sfera Group comply with all safety and quality standards.

● Specifications of Sfera drying cabinets with a roll-out hearth:

1. During manufacture, the cabinet dimensions are calculated from the size of the planned load of products.

2. For comfortable loading/unloading of materials, the electric furnaces have different door designs (swing, sliding, or doors mounted on the hearth and moving together with it).

3. Hearth transport has several options (manual movement with a handle or electromechanical).

4. At the customer's request, the drying cabinet can be fitted with racks, bars, hangers, trays and an inspection window.

5. Cabinets are supplied as complete, easily assembled modules.
