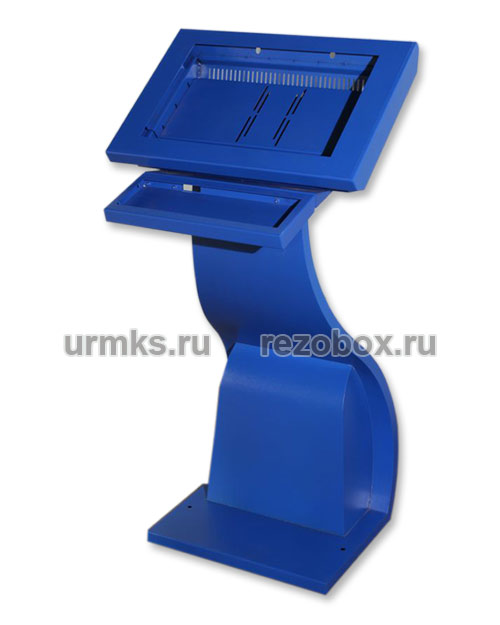

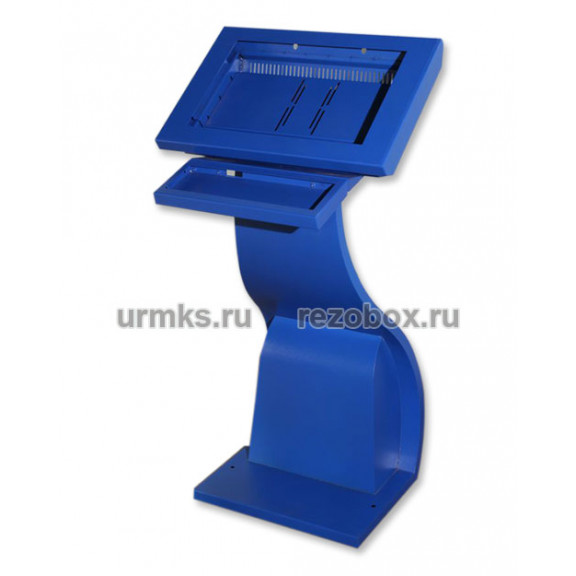

Grace enclosure with keyboard

The enclosure design is adapted to the following components

22" monitor assembly

• designed for standard 22" TFT monitor sizes (resolution 1680x1050, 16:10)
• the enclosure is designed for standard 22" touch panel sizes.

21,5" monitor assembly(to order)

• designed for standard 21,5" TFT monitor sizes (16:9).
• the enclosure is designed for standard sizes of 21,5" touch panels (16:9)

Touch panel dimensions 21,5:

• Full size 512 mm × 304 mm (±2 mm)
• Visible size 480 mm × 272 mm (±2 mm)

Metal vandal-resistant keyboard with trackball TG-PC-I

• Size: 400x124 mm
• Specification: 66 keys

Computer unit(mATX form factor, hard disk mounting, surge protector, etc.);
